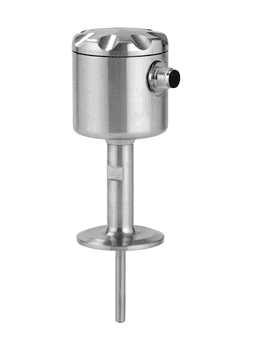

Alfa Laval Temperature Transmitter

Application

The Alfa Laval temperature transmitter is designed to fulfil the demands
in hygienic and pharmaceutical production. The main features are:

• Wetted parts in AISI316L stainless steel
• Compact and hygienic design (3A / FDA and EHEDG compliant)
• Measuring range: -20 to 150°C
• Configurable touch display
• High accuracy < 0.1 °C
• Sample time: 0,7

Standard range

Standard stainless steel field housing in outstanding polish, fit for sanitary uses, makes the Alfa Laval temperature transmitter.
As an alternative wetly polished items can be electropolished down to Ra 0.4µm, all process connections are as standard hygienic connections with high cleanability and microbial tightness. Sensor tip design guarantees accurate measurements and low reaction times. Either a normal 4-20 mA, 4-20 mA/HART® output or Profi bus® PA interface can be provided as the output.

TECHNICAL DATA

Temperature Transmitter accuracy
0 to 100 °C < ± 0.39 °C
0 to 150 °C < ± 0.48 °C
-10 to 100 °C < ± 0.39 °C
-20 to 150 °C < ± 0.48 °C

Measuring ranges

0 to 100 °C
0 to 150 °C
-10 to 100 °C
-20 to 150 °C

Resolution: . . . . . . . . . . . . . 12 bit
Protection class: . . . . . . . . . IP 67
with cable gland IP69K with M12 connector
Max media pressure: . . . . . . . 100 bar
