TKL Titan-Slurry Slurry Pump
-
TKL Titan-Slurry Pump for industrial applications:
Construction, Dewatering and Water Supply (mining), Digester, Flue Gas Desulfurization, Food Processing, Water Treatment, Primary Processing (mining), Scale Recycle, Sewage Collection and Treatment, Slurry Transfer (mining), Leaching Acid
-
Industries:
General Industries, Mining, Water Resources, Primary Metals, Pulp and Paper, Power Generation

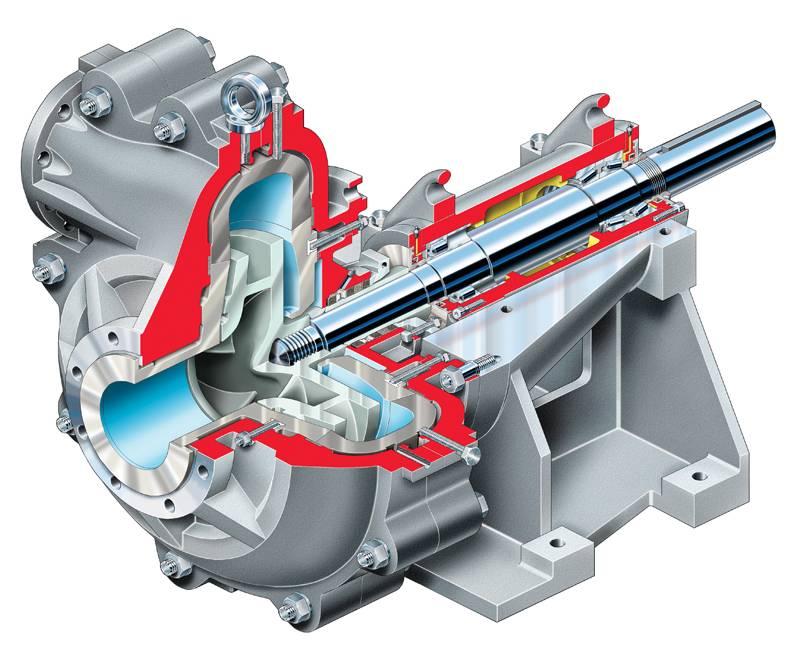

Dual Casing provides access to elastomeric or hard metal liners for inspection or replacement. Machined mating faces provide proper liner compressions.
Elastomeric and Hard Metal Liners are fully interchangeable, allowing the most economical material to be used.
High-Efficiency, Closed Vane Impeller has adjustable face clearance and generous wear allowance. Threaded shaft to impeller design eliminates troublesome impeller nut.
Removable Stuffing Box converts to various shaft sealing options without modification to the shaft, liner or impeller.
Bearing Cartridge incorporates back-to-back taper roller bearings to carry axial and belt loads. A roller bearing
Operating Parameters:
- Flows to 3600 m3/h (16 000 gpm)
- Heads to 90 m (300 ft)
- Pressures to 40 bar (580 psi)
- Sizes from 50 mm (2 in) to 350 mm (14 in)
